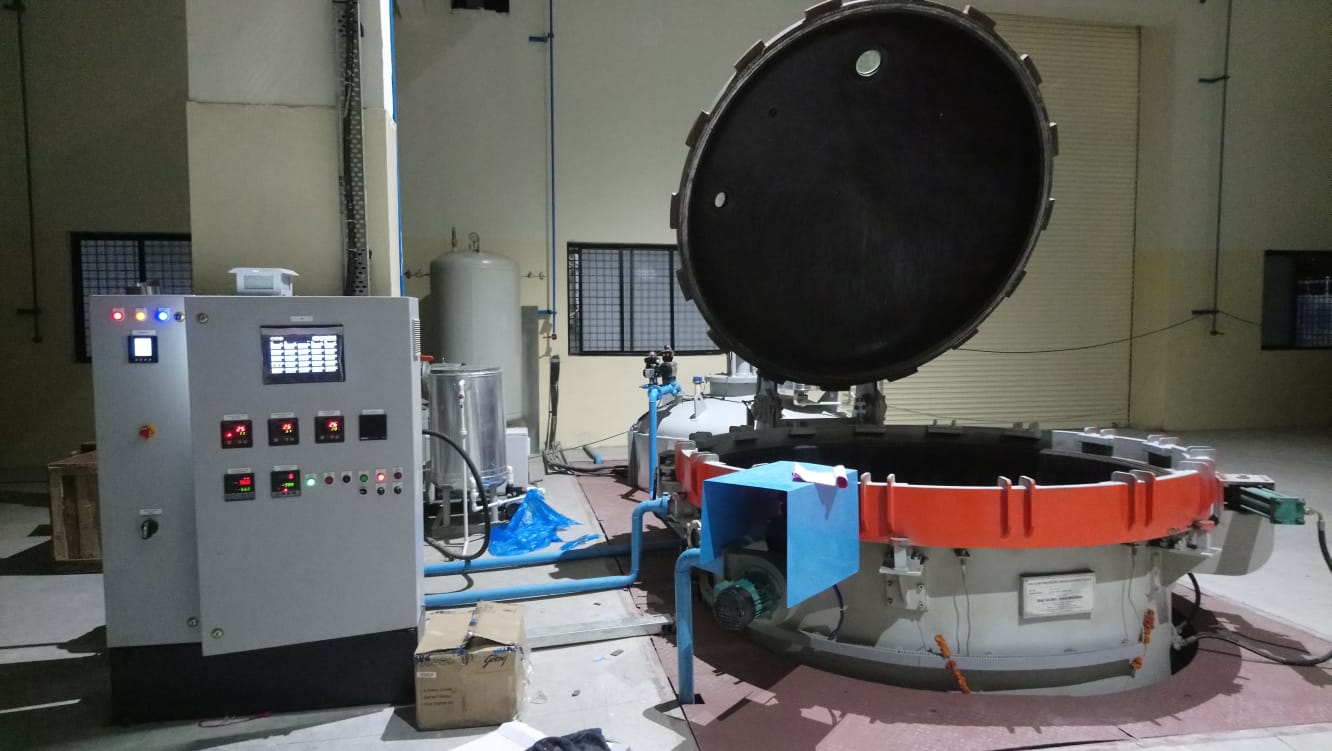

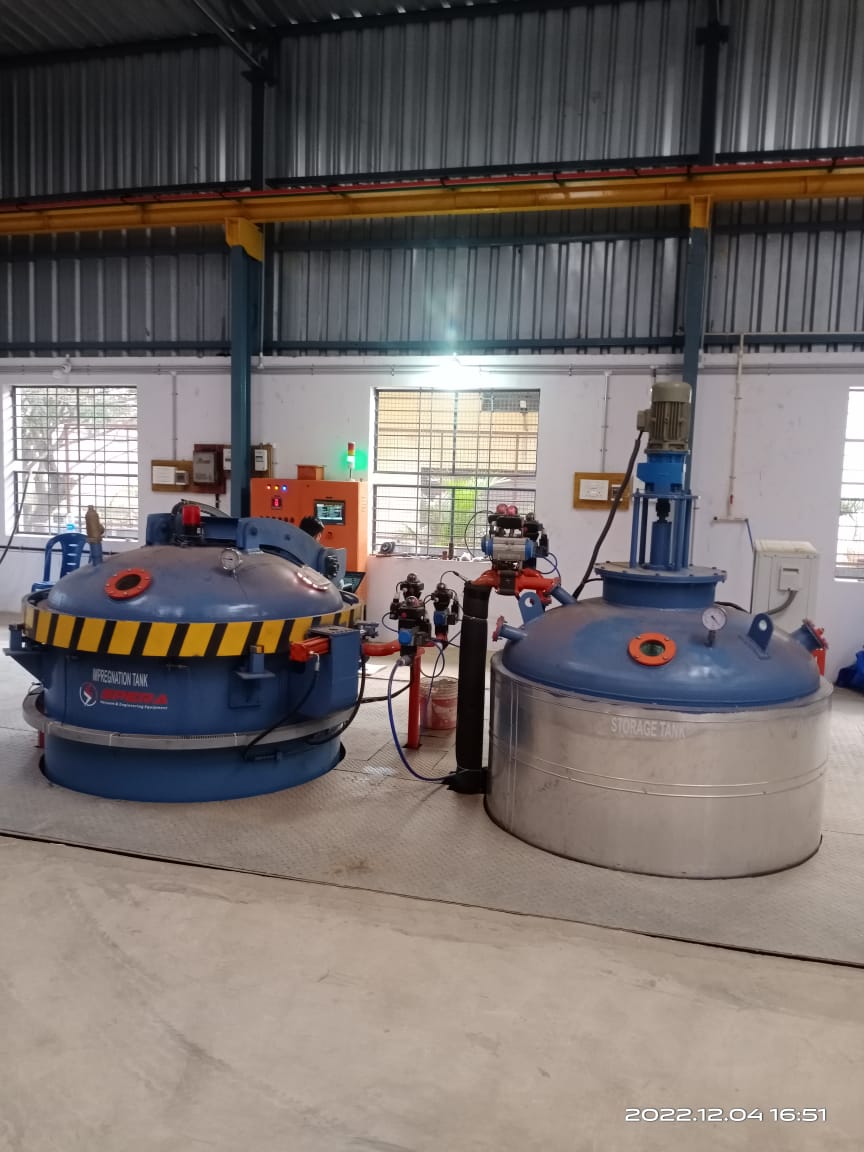

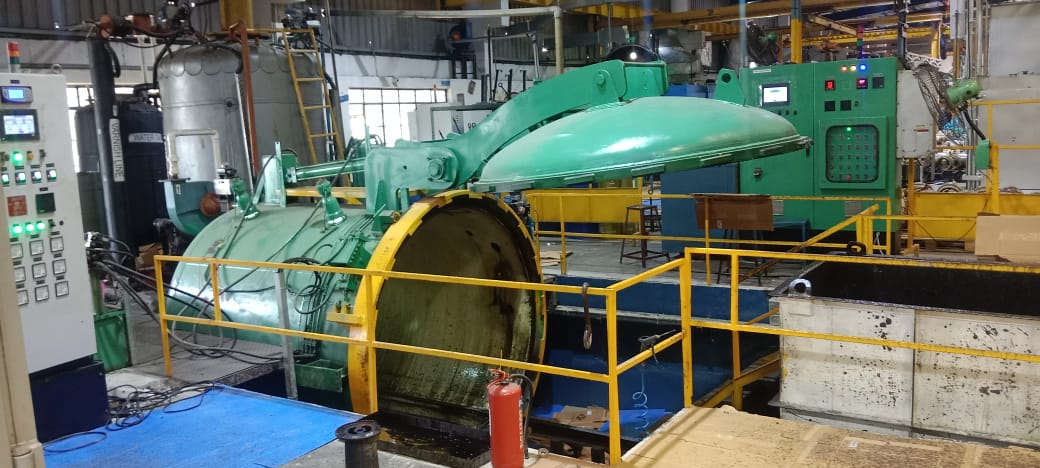

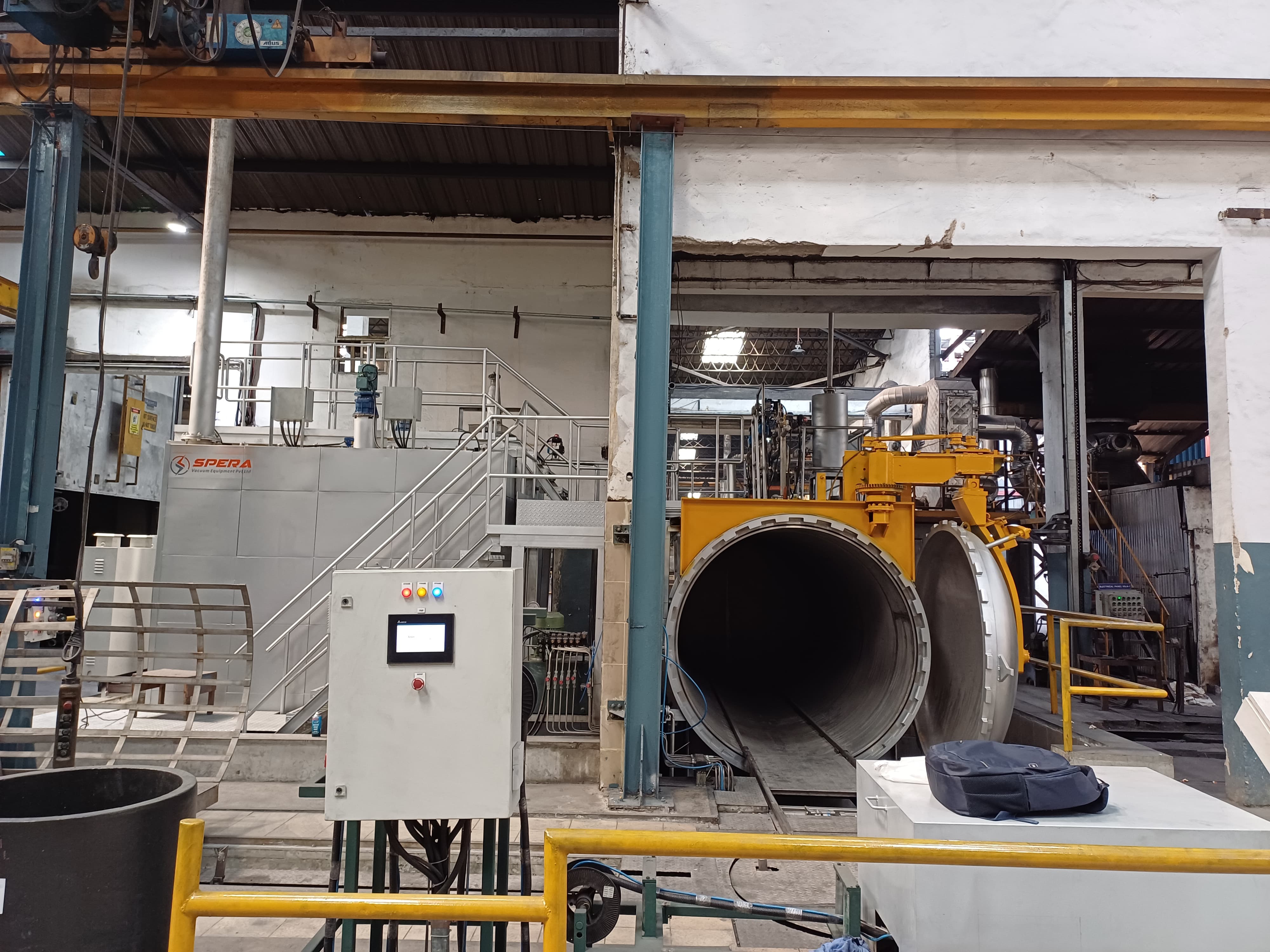

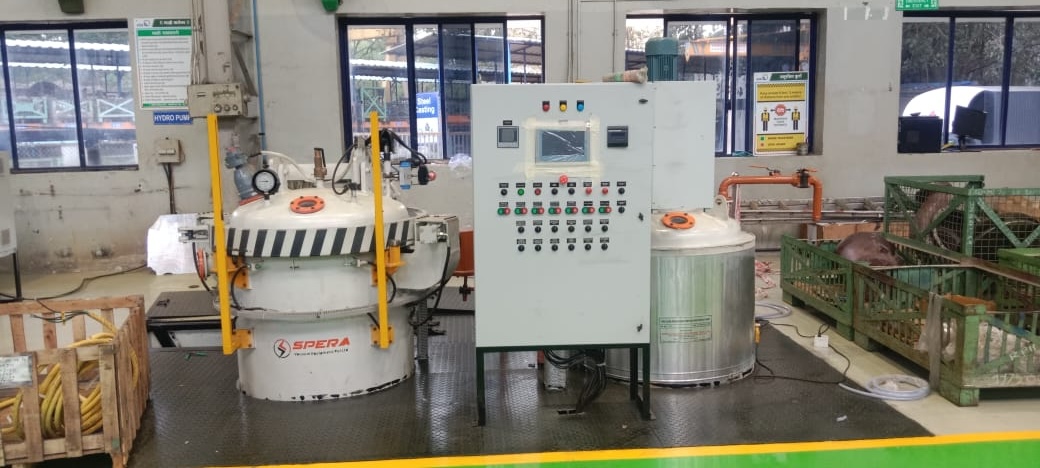

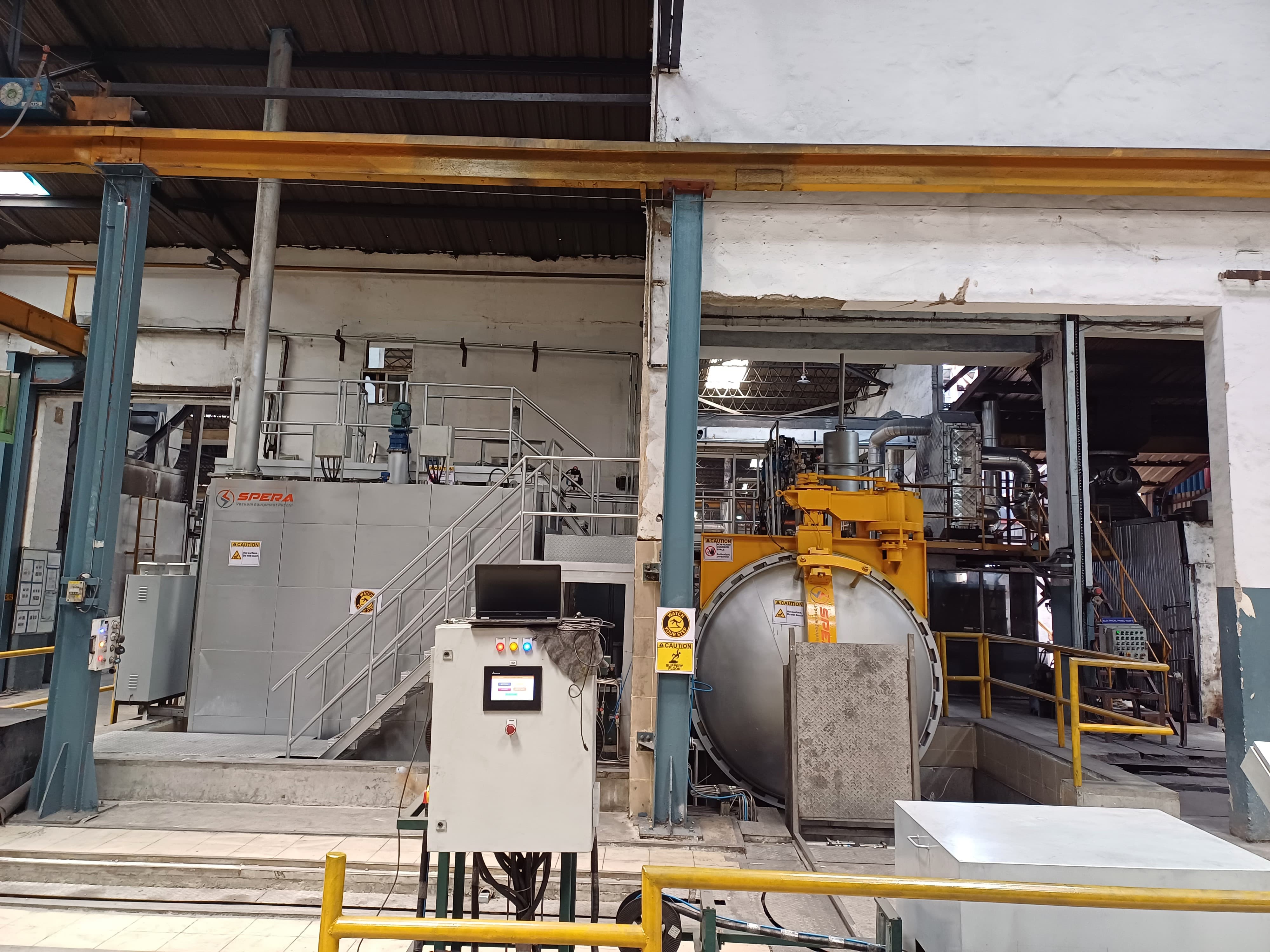

Vacuum Pressure Impregnation Plant

Leading manufacturer and supplier of Vacuum Pressure Impregnation Plants for transformer coils, motors, generators, and electrical winding insulation applications.

Our Vacuum Pressure Impregnation (VPI) Plant is a high-performance industrial system designed for the impregnation of transformer coils, motors, stators, rotors, electrical windings, and insulation components with varnish or resin under controlled vacuum and pressure conditions. The system ensures deep penetration of insulating material into the windings, eliminating air pockets and enhancing the electrical, thermal, and mechanical strength of the component.

The VPI process combines deep vacuum drying, controlled resin filling, pressure impregnation, and curing preparation, enabling complete insulation treatment for high voltage electrical equipment. This process significantly improves dielectric strength, moisture resistance, heat dissipation, and service life.

Widely used by transformer manufacturers, motor and generator OEMs, electrical equipment manufacturers, repair workshops, and insulation processing industries, the VPI plant is ideal for high-reliability applications in the power sector.

The Vacuum Pressure Impregnation process provides the following benefits:
• Improved electrical motor efficiency
• Higher dielectric strength
• Increased mechanical strength
• Improved thermal conductivity
• Reduced probability of insulation failure
• Superior protection against moisture and chemicals

Types of VPI Plants

Manual VPI Plant

Manual VPI plants include manual lid clamping, manually operated valves, and manually controlled process cycles. Ideal for low-volume or specialized jobs where operator control is required.

Semi-Automatic VPI Plant

Semi-automatic VPI plants combine manual and automated operations with configurable process steps, offering a good balance between control and throughput.

Automatic VPI Plant

Automatic VPI plants include automatic lid locking systems, pneumatic valves, and PLC/HMI control for fully automated operation and consistent, repeatable results.

Features

Advanced vacuum and pressure impregnation system
Deep penetration of varnish / resin into windings
High-efficiency vacuum drying chamber
Vacuum and pressure process cycles
Controlled pressure cycle for uniform impregnation
PLC / HMI based automatic control system
Resin storage and transfer system
Heavy-duty pressure vessel construction
Energy-efficient and low maintenance design
Custom chamber sizes and capacities available
Suitable for batch and continuous industrial applications

A demonstration video for the Vacuum Pressure Impregnation Plant.

Applications

1
Transformer coil impregnation
2
Motor stator and rotor impregnation
3
Electrical coil varnishing
4
Generator winding insulation
5
High-voltage winding treatment
6
Repair and refurbishment applications
7
Insulation strengthening process

Benefits

Improves dielectric strength
Enhances moisture resistance
Increases mechanical bonding of windings
Improves heat dissipation
Reduces insulation failure risk
Extends equipment life
Improves product reliability and performance

Questions? You’re covered

Designed for critical insulation processing applications, our Vacuum Pressure Impregnation Plant offers reliable vacuum performance, precise pressure control, and consistent impregnation quality. We provide customized chamber sizes, automation options, and long-term service support for transformer and electrical equipment manufacturers.

Vacuum pressure impregnation removes trapped air from insulation and fills the voids with resin. This improves dielectric strength, mechanical stability, and protection against moisture and contaminants.

VPI plants are commonly used for electric motor stators, rotors, generator windings, transformer coils, and other electrical insulation systems.

Automatic VPI plants provide consistent impregnation quality, reduced manual operation, improved process control, and higher production efficiency through PLC and HMI control systems.
