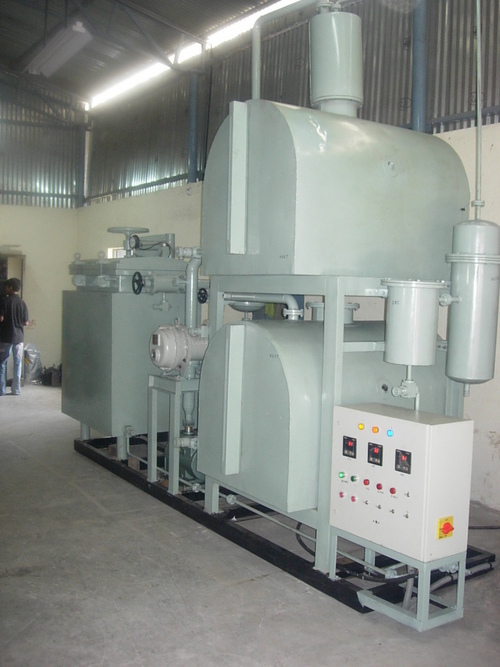

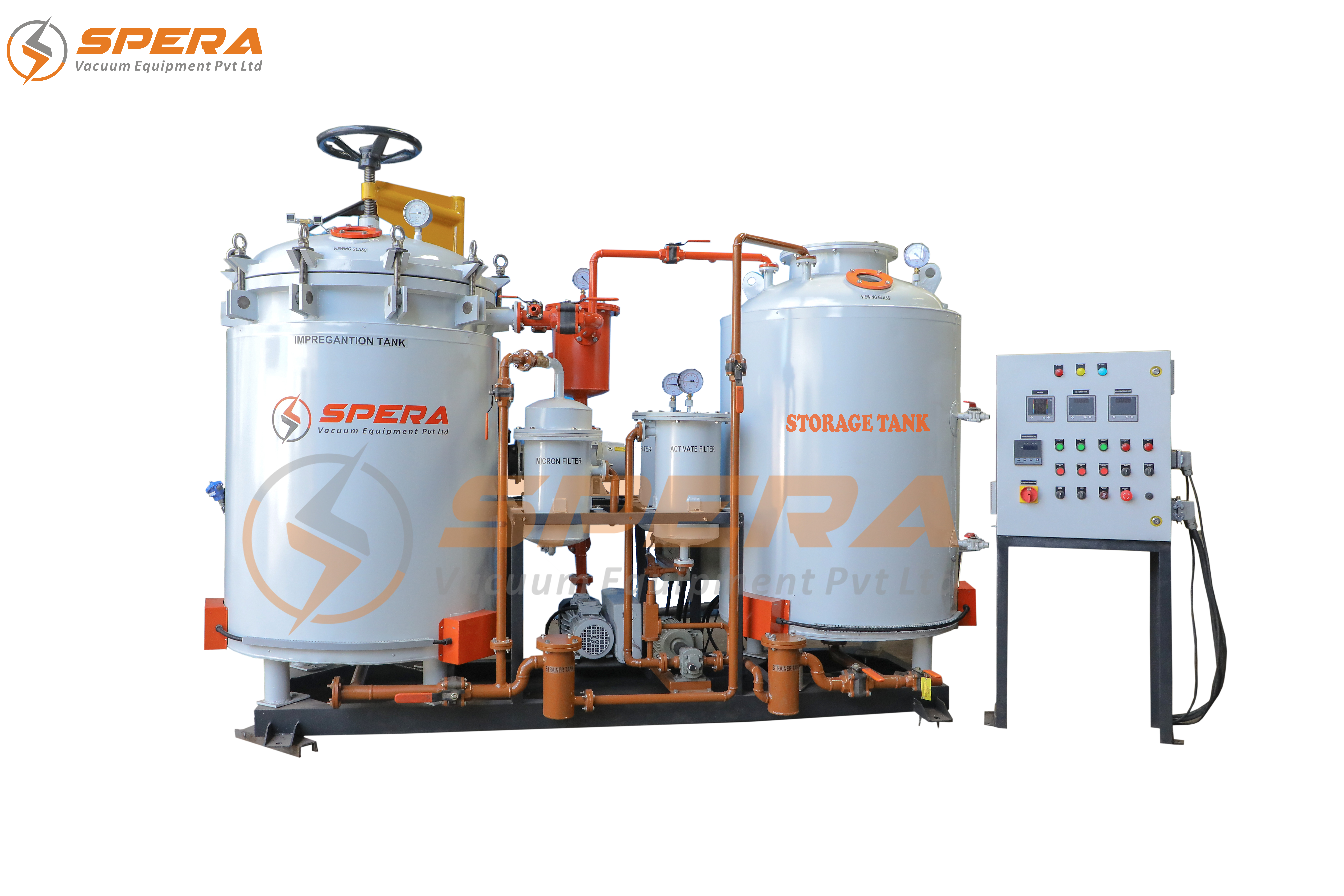

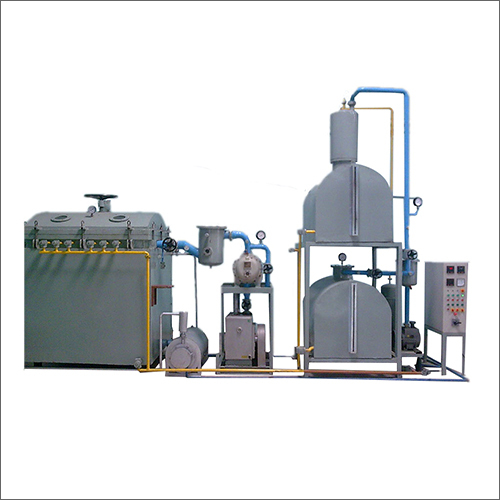

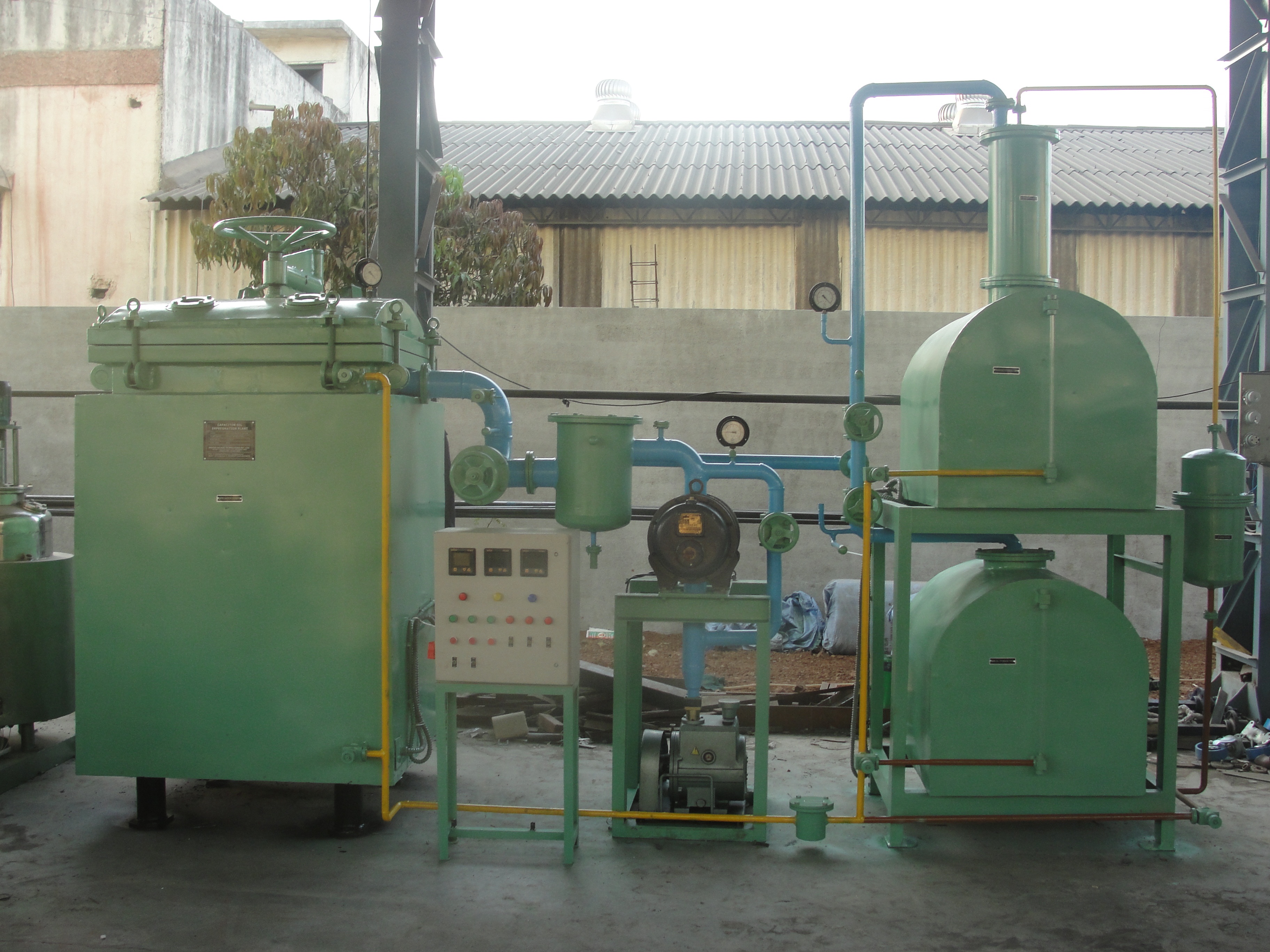

Capacitor Oil Impregnation Plant

Our Capacitor Oil Impregnation Plant is a precision-engineered industrial system designed for the vacuum drying, degassing, and oil impregnation of power capacitors, capacitor elements, and insulation assemblies. The plant ensures deep and uniform penetration of insulating oil into the capacitor winding and dielectric material, eliminating trapped air, residual moisture, and gases that can affect electrical performance.

Using advanced high-vacuum technology, controlled oil heating, and vacuum oil filling systems, the plant improves the dielectric strength, insulation reliability, and service life of capacitors used in power transmission, distribution, and industrial electrical applications. The process enables efficient impregnation of dielectric paper and internal elements to ensure stable capacitance and long-term operational safety.

Widely used by capacitor manufacturers, electrical OEMs, power equipment manufacturers, and service providers, this plant is ideal for power capacitors, capacitor banks, HT/LT capacitors, and specialty electrical capacitor assemblies.

Features

High-vacuum oil impregnation and drying system
Efficient removal of air, moisture, and dissolved gases
Controlled oil heating and circulation system
Uniform impregnation of dielectric paper and windings
Precision vacuum chamber for capacitor elements
PLC / HMI based automatic control system
Oil storage, filtration, and transfer arrangement
Heavy-duty leak-proof chamber construction
Energy-efficient and low maintenance design
Available in customized chamber sizes and capacities

Applications

1
Power capacitor manufacturing
2
Capacitor bank element impregnation
3
HT / LT capacitor insulation treatment
4
Dielectric paper oil filling
5
Electrical capacitor repair and refurbishment
6
Specialty industrial capacitor applications

Benefits

Improves dielectric strength
Enhances insulation reliability
Removes trapped air and moisture
Improves thermal stability
Reduces failure and breakdown risk
Ensures long service life
Improves overall capacitor performance

Questions? You’re covered

Designed for high-reliability electrical applications, our capacitor oil impregnation system delivers precise vacuum performance, controlled oil handling, and consistent impregnation quality. We offer customized capacities, automation options, and long-term service support for capacitor manufacturers and power sector clients.

Vacuum impregnation removes trapped air and moisture from capacitor elements and replaces them with insulating oil. This increases dielectric strength and reduces the risk of partial discharge and electrical failure.

The plant can impregnate capacitors, sintered components, porous metal parts, and electrical components requiring oil insulation.

Oil impregnation eliminates air gaps inside capacitors, preventing partial discharge and increasing insulation reliability and service life.
