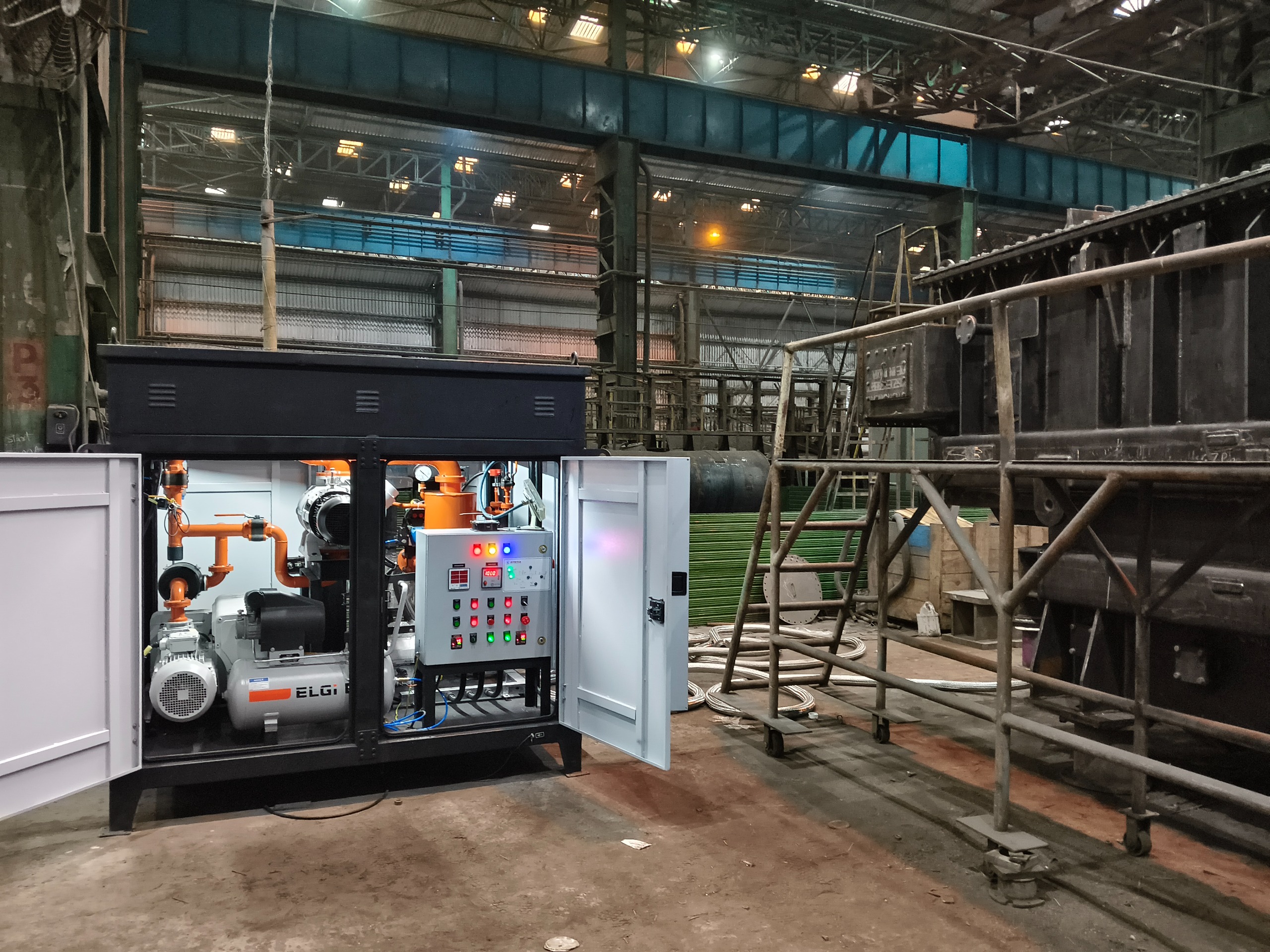

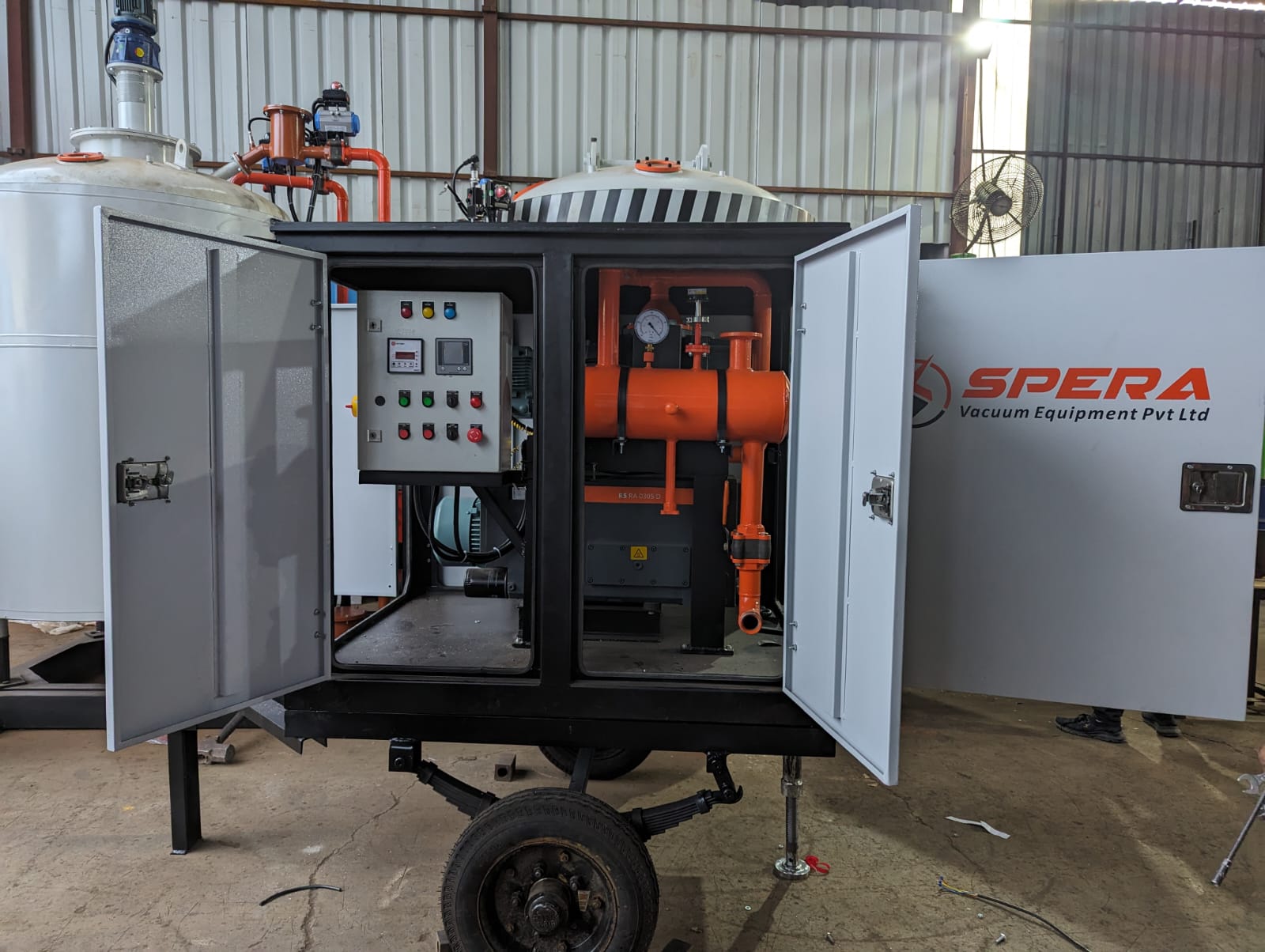

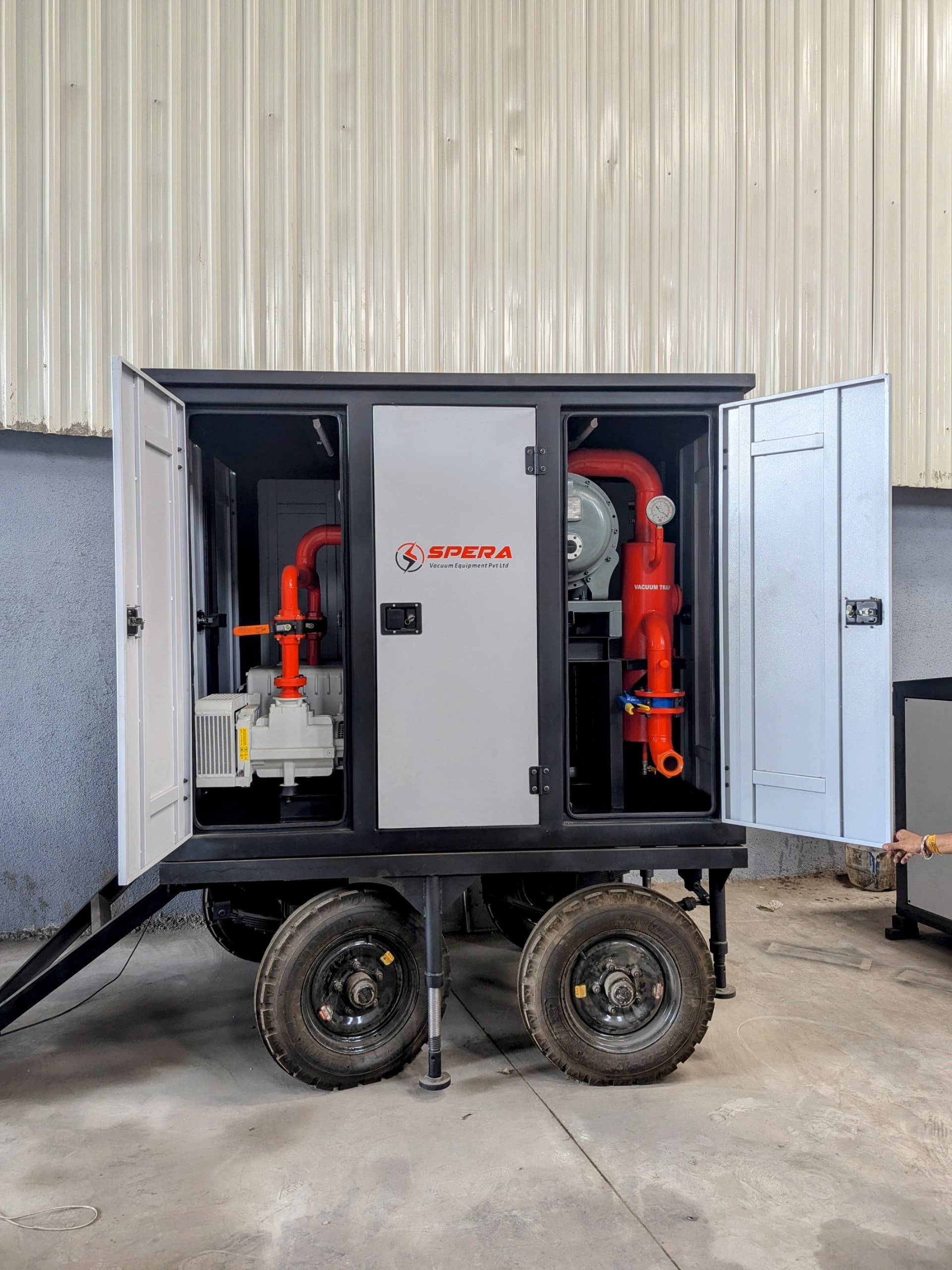

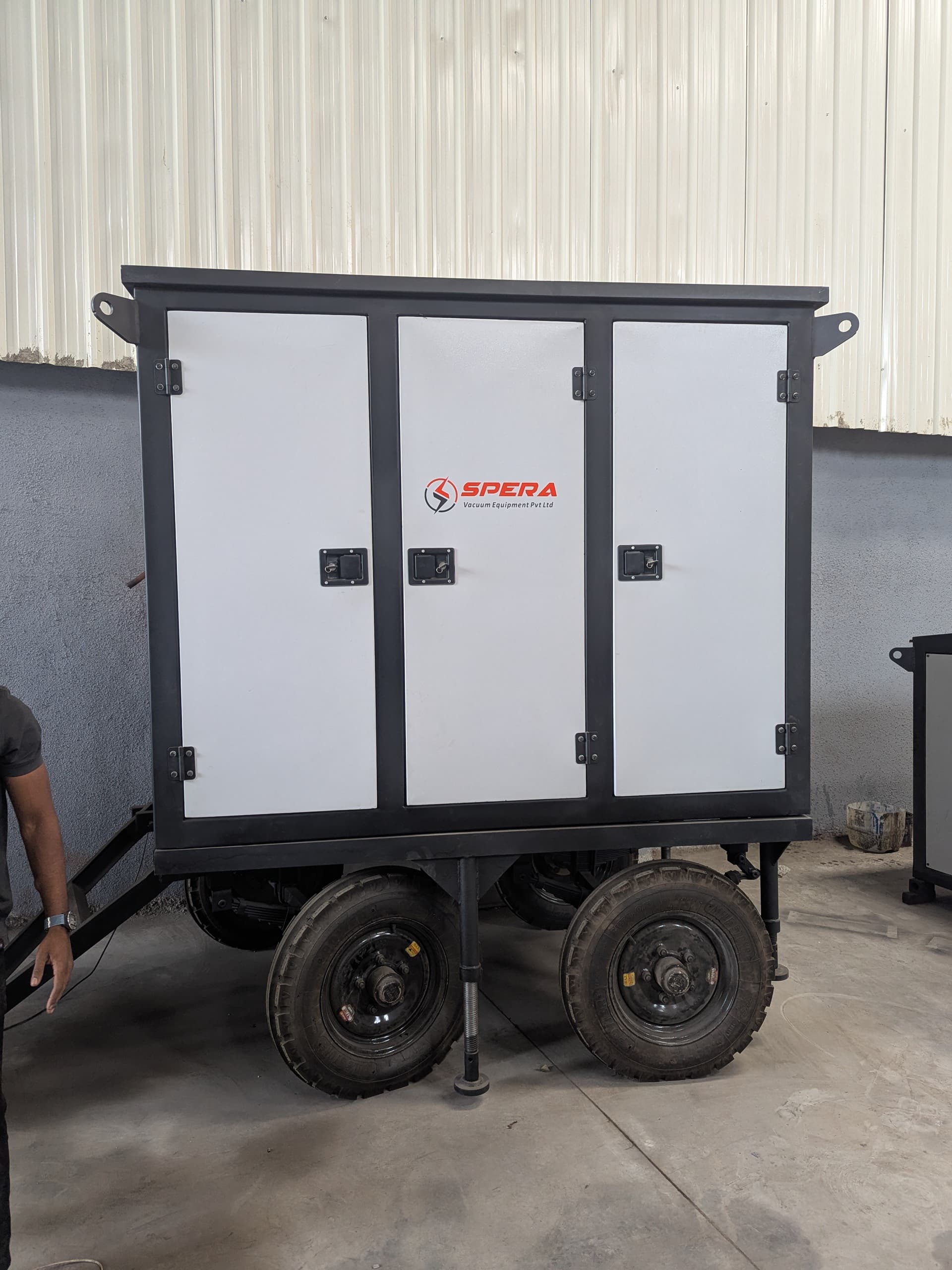

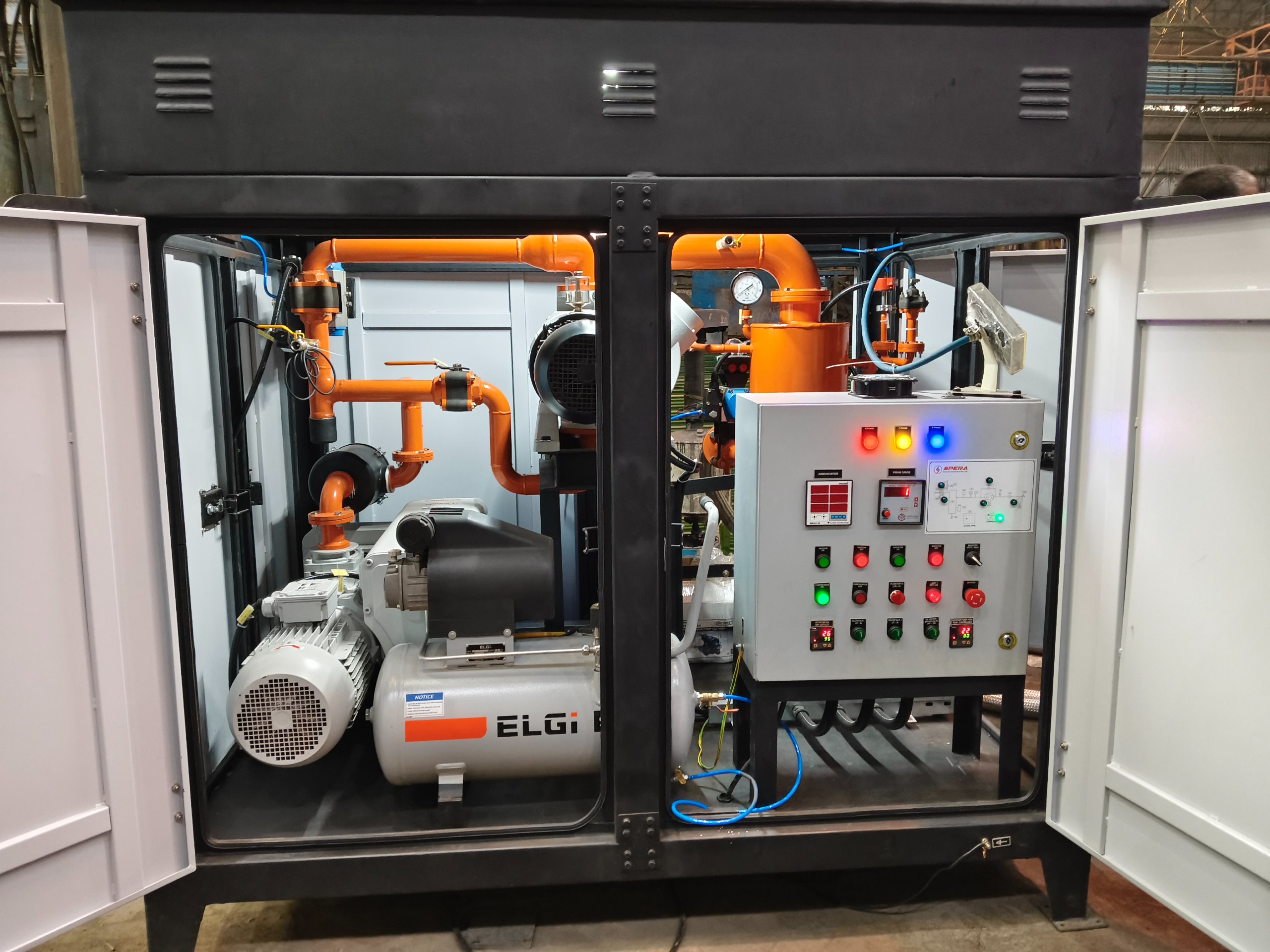

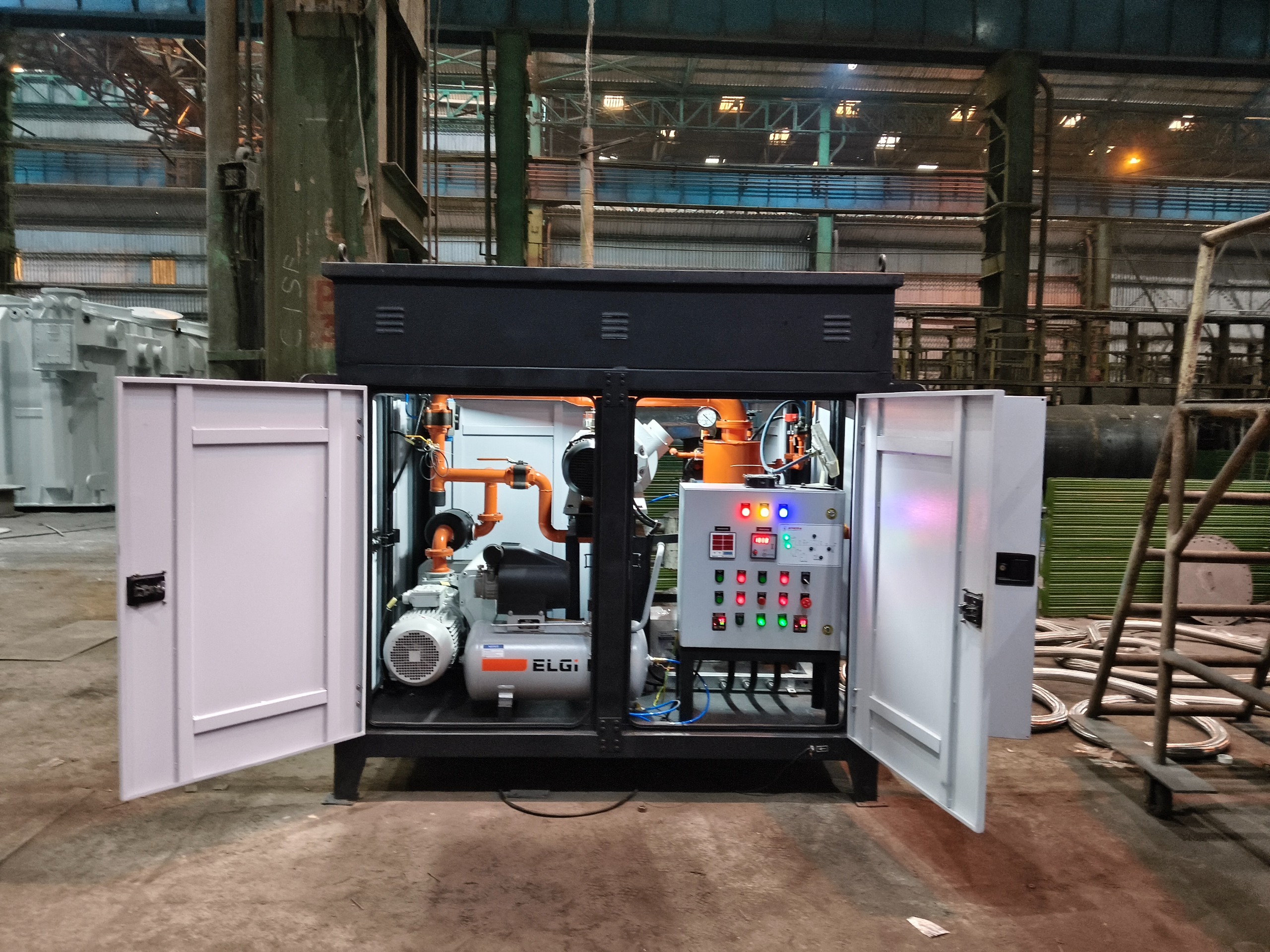

Transformer Evacuation Machine

Our Transformer Vacuum (Evacuation) Pumping System is designed for efficient air evacuation, moisture removal, and deep vacuum creation inside transformer tanks and oil filled electrical equipment. It is used prior to oil filling, commissioning, testing, and maintenance to achieve the required vacuum level and ensure reliable transformer performance.

The system uses high-capacity vacuum pumps and controlled evacuation to remove air, trapped gases, humidity, and residual moisture from the transformer tank, active parts, and connected piping. This process improves insulation quality, increases insulation resistance (IR value), and minimizes the risk of partial discharge, insulation failure, and moisture-related breakdowns.

Transformer life largely depends on the insulation condition of windings. Moisture absorption in insulation is one of the main reasons for reduced IR value. Vacuum drying without heating effectively removes this moisture, helping maintain insulation strength for high voltage and high current applications.

Widely used by transformer manufacturers, utilities, repair workshops, EPC contractors, and service providers, the system is suitable for power transformers, distribution transformers, reactors, OLTC compartments, and other oil-filled equipment.

Features

High-capacity deep vacuum pumping system
Fast evacuation of transformer tank and pipelines
Effective removal of air, moisture, and gases
Suitable for pre-oil filling evacuation
Robust industrial vacuum pump assembly
PLC / HMI based automatic control (optional)
Vacuum gauges and monitoring instruments
Portable skid-mounted design for site use
Low maintenance and energy-efficient operation
Available in customized pumping capacities

A demonstration video for the Transformer Evacuation Machine.

Applications

1
Transformer tank evacuation
2
Pre-oil filling vacuum creation
3
Transformer commissioning
4
Transformer repair and servicing
5
Moisture removal from active parts
6
Pipeline and chamber evacuation
7
Utility and substation maintenance

Features

Improves insulation reliability
Removes trapped air and moisture
Prevents dielectric failure
Enhances transformer life
Reduces commissioning time
Improves oil filling quality
Ensures safe and efficient operation

Questions? You’re covered

Designed for critical transformer manufacturing and field service applications, our vacuum evacuation system delivers reliable deep vacuum performance, fast processing, and durable industrial construction. We offer customized capacities, portable designs, and long-term service support for transformer OEMs and power sector clients.

The machine uses high-performance vacuum pumps capable of achieving working vacuum levels up to 10 Pa and ultimate vacuum up to 1 Pa. These deep vacuum conditions ensure effective drying and evacuation of transformers.

Yes, used transformer oil can be safely reused after filtration. The filtration process restores the oil’s insulating properties, making it suitable for continued use in transformers.

Yes, the Transformer Evacuation Machine is designed for on-site transformer repair and servicing. Its compact, easy-to-operate design and quick startup make it ideal for transformer maintenance in workshops, substations, and power plants.
