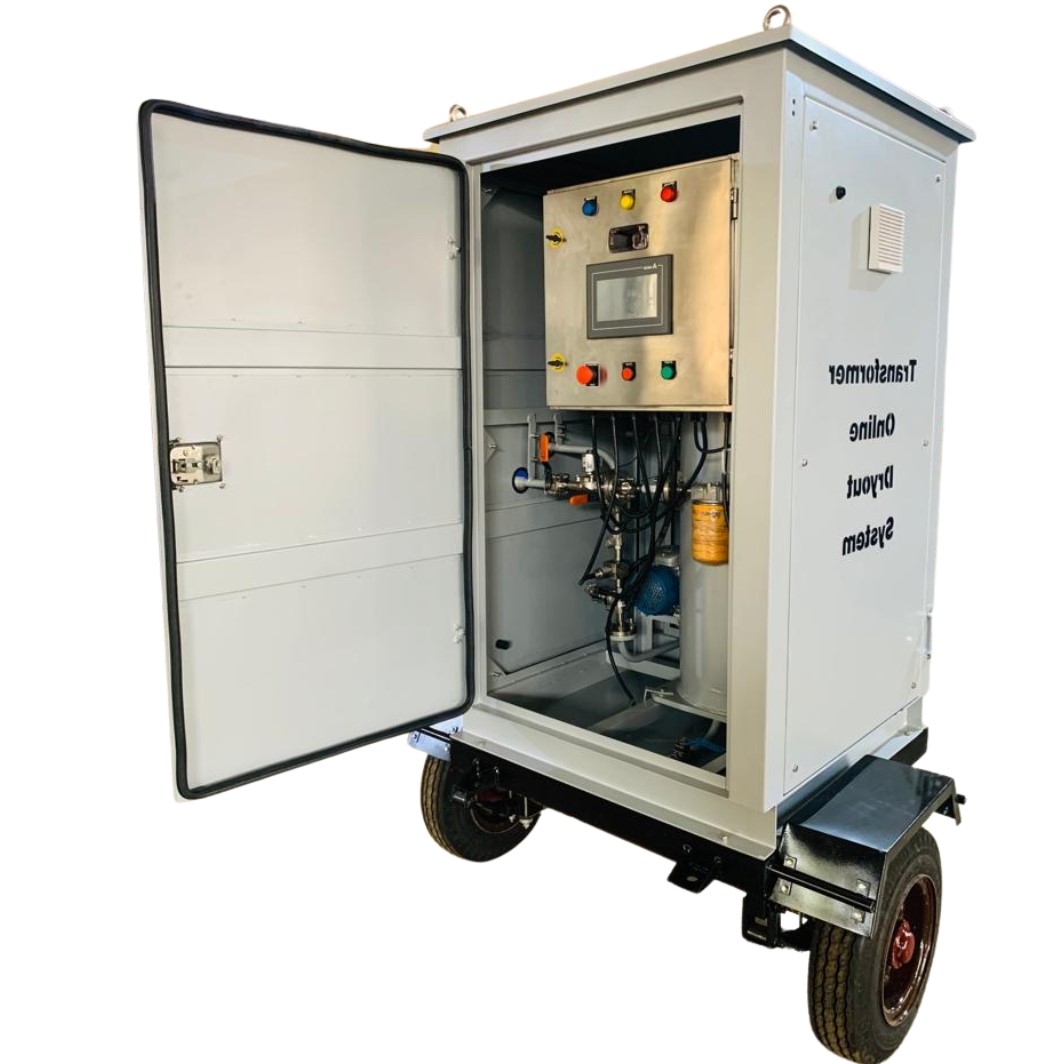

On-Line Drying Out System

It is mounted with the transformer and continuously draws oil from the tank, removes moisture through an adsorbent medium, and returns dry oil to the top of the transformer.

The On-Line Drying Out System is designed to remove moisture and contaminants from transformer insulating oil while the transformer remains in operation. The system circulates oil through specialized adsorption media and filtration units to eliminate moisture and impurities without interrupting power supply.

By maintaining dryness in both oil and insulation, it improves dielectric strength, slows insulation ageing, reduces sludge formation, and extends transformer service life without affecting DGA results.

Features

Continuous online drying without transformer shutdown
Compact and easy-to-operate design
Moisture removal using special adsorption media
High-efficiency filtration elements
Continuous oil circulation system
Digital moisture monitoring in PPM
Low maintenance and easy cartridge replacement
⁠Sealed system to prevent moisture ingress and contamination
⁠PLC-based automatic control system
Audio / visual alarm and protection system
⁠Suitable for permanent or temporary installation
Optional stainless-steel construction for outdoor use

Applications

1
⁠New transformers: Maintaining factory dryness
2
Middle-age transformers: Improving insulation life
3
Spare transformers: Maintaining dryness during idle condition
4
Regenerated / desludged transformers: Maintaining achieved dryness levels
5
⁠Oil storage tanks: Maintaining dryness of stored oil
6
Continuous moisture removal from transformer oil and insulation
7
⁠Maintaining low moisture levels in operating transformers
8
Extension of transformer insulation service life
9
Power and distribution transformers
10
⁠Electrical substations and utility maintenance
11
⁠Preventive maintenance of transformers
12
⁠Improvement of dielectric strength of insulating oil
13
⁠Long-term moisture control of transformers

Questions? You’re covered

An On-Line Drying Out System is used to remove moisture and contaminants from transformer oil while the transformer is in operation. It helps maintain insulation quality and improves transformer reliability.

The system continuously circulates transformer oil through specialized drying media and filtration units where moisture and impurities are removed. The treated oil is then returned to the transformer.

Yes. The On-Line Drying Out System operates while the transformer remains energized, allowing moisture removal without interrupting power supply.

Online drying reduces moisture content in oil and insulation, improves dielectric strength, extends transformer life, and reduces maintenance costs.
