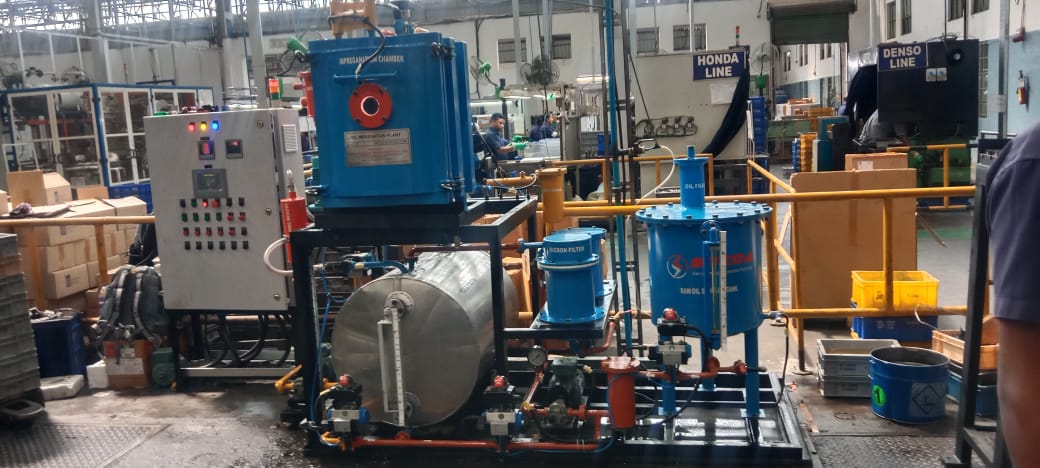

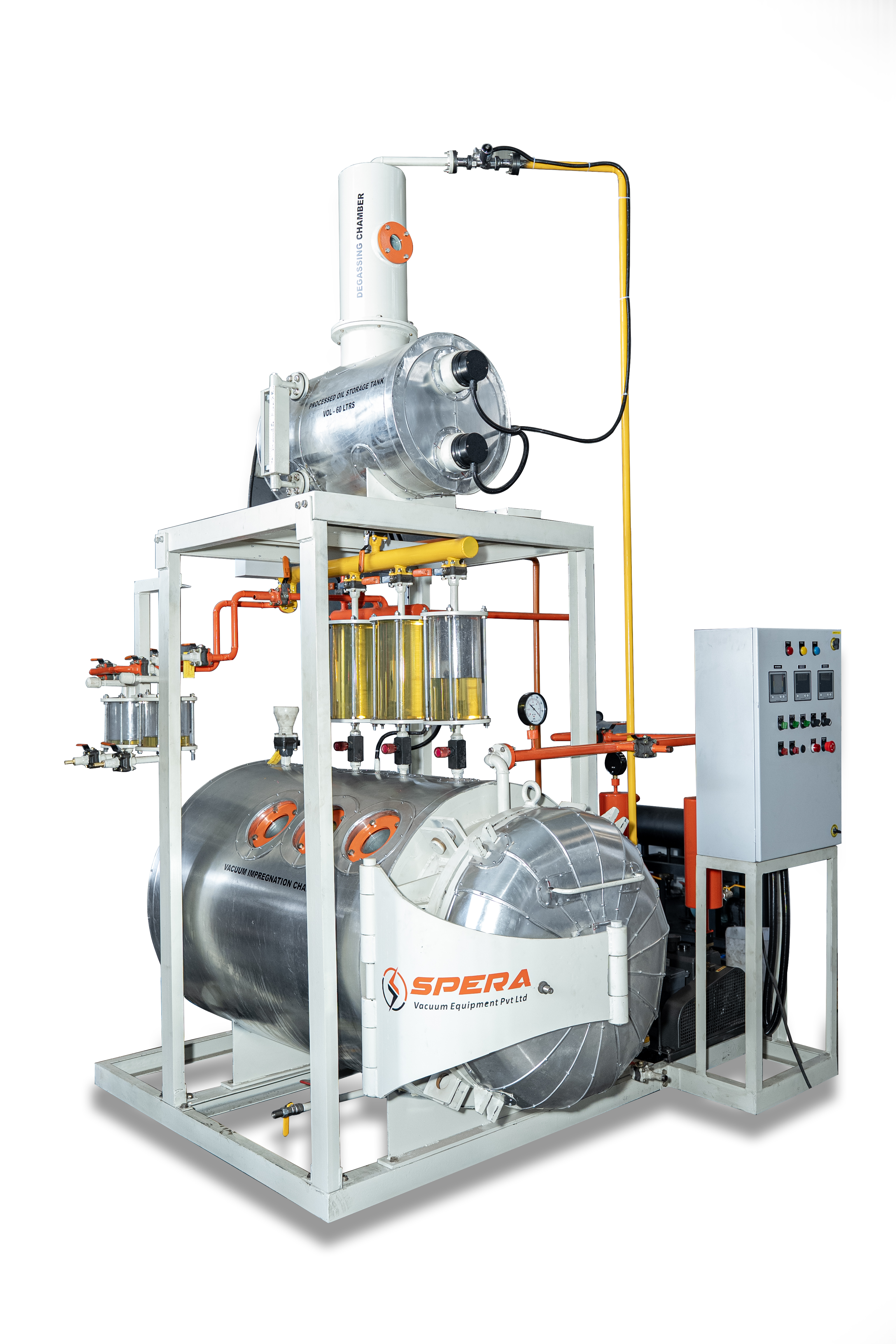

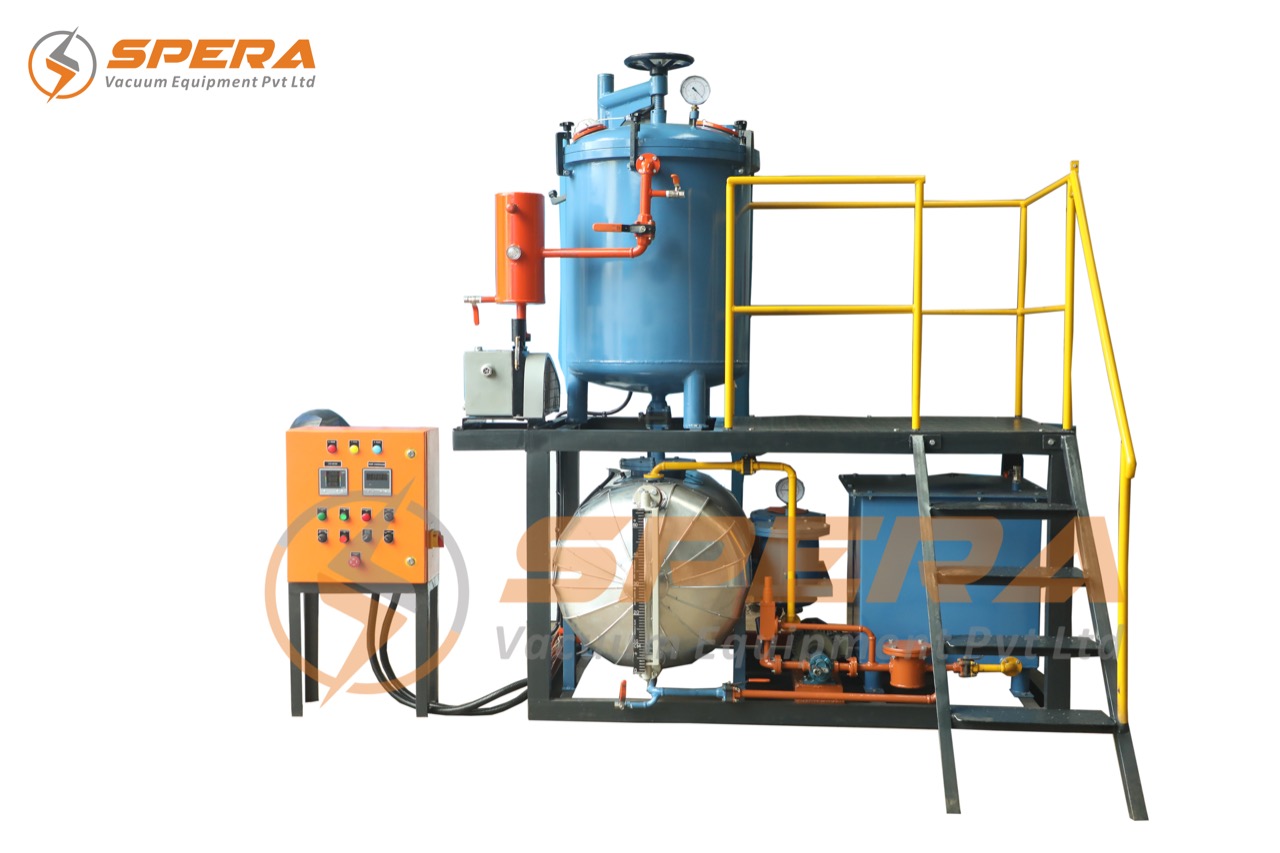

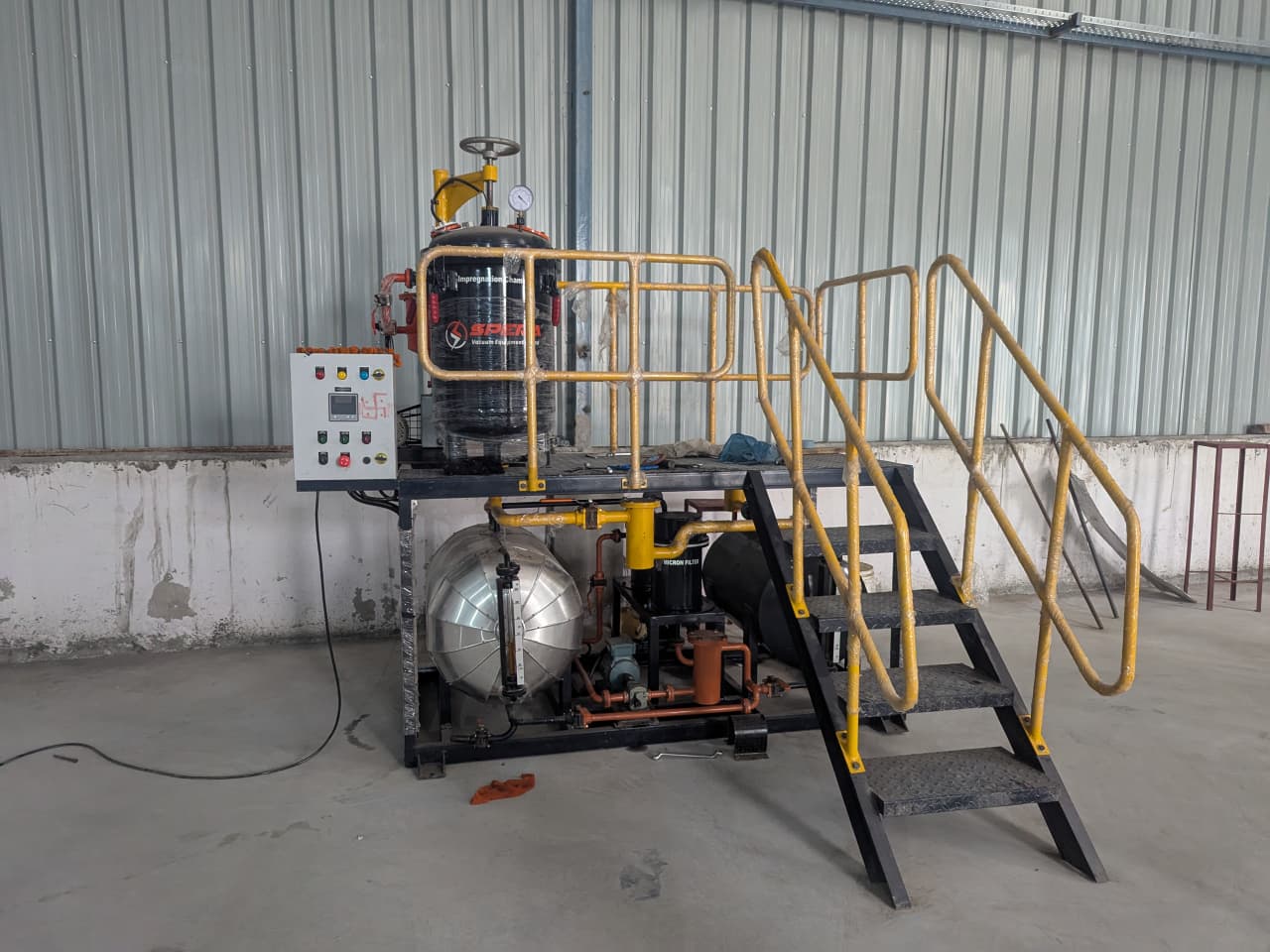

Oil Impregnation Plant

Leading manufacturer and supplier of oil impregnation plants for Sintered Products, Bushing, capacitors, electrical coils, and insulation component applications.

Our Oil Impregnation Plant is a high-performance industrial system designed for the vacuum-assisted oil impregnation of electrical components, transformer windings, capacitors, coils, bushings, and insulation assemblies. The plant ensures deep and uniform penetration of insulating oil into porous insulation materials, eliminating trapped air and moisture to improve dielectric performance and product reliability.

Using advanced vacuum impregnation and controlled oil filling technology, the system removes air pockets from the insulation structure and enables complete oil absorption into paper, pressboard, windings, and other porous components. This process significantly enhances insulation strength, heat dissipation, moisture resistance, and service life.

Widely used by transformer manufacturers, capacitor manufacturers, electrical OEMs, repair workshops, and power equipment service providers, the plant is ideal for high voltage and medium-voltage electrical applications where insulation integrity is critical.

Features

Advanced vacuum oil impregnation system
Deep penetration of insulating oil
Effective removal of trapped air and moisture
Controlled oil heating and circulation system
High-vacuum chamber for uniform impregnation
PLC / HMI based automatic control system
Oil storage, transfer, and filtration arrangement
Heavy-duty chamber and piping construction
Energy-efficient and low maintenance design
Custom chamber sizes and capacities available

Applications

1
Transformer winding impregnation
2
Capacitor oil filling and impregnation
3
Coil and bushing insulation treatment
4
Pressboard and paper insulation impregnation
5
Electrical component manufacturing
6
Repair and refurbishment applications
7
High-voltage insulation processing

Benefits

Improves dielectric strength
Removes trapped air and moisture
Enhances insulation reliability
Improves thermal conductivity
Reduces failure risk
Extends equipment life
Ensures consistent product quality

Questions? You’re covered

Designed for critical electrical insulation applications, our vacuum oil impregnation plant offers reliable vacuum performance, precise oil handling, and uniform impregnation quality. We provide customized plant capacities, automation options, and long-term service support for transformer and electrical equipment manufacturers.

Vacuum impregnation removes trapped air and moisture from insulation and allows oil to penetrate deeply into insulation structures. This improves dielectric strength and transformer reliability.

The plant can be used for transformer windings, insulation materials, capacitors, bushings, sintered products, self-lubricating bearings and other electrical components requiring oil impregnation.

Oil Impregnation Plants are used in applications on where oil needs to be fused/penetrated inside the components like Sintered products and self-lubricating bearing process.
